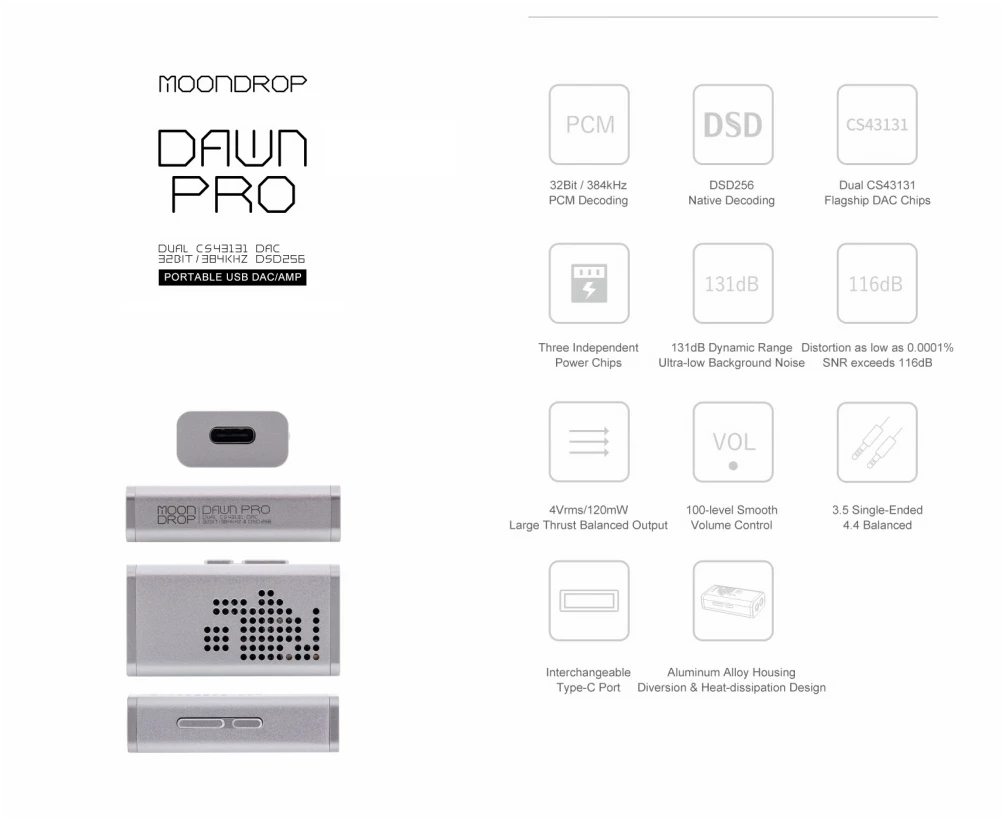

MOONDROP Dawn Pro USB DAC/AMP

MOONDROP DAWN PRO USB DAC/AMP – Dual CS43131, Balanced Hi-Fi Portable DAC:

Specifications:

• Model: DAWN PRO High-Performance DAC/AMP
• Weight: 13 g
• Dimensions: 42 × 22.45 × 12.39 mm
• Headphone Connector: 3.5 mm Single-Ended, 4.4 mm Balanced
• Frequency Response: 5 Hz – 82 kHz (±1 dB)
• Background Noise (4.4 mm): 1.3 μV (AES17, 20 kHz)
• Background Noise (3.5 mm): 1.5 μV (AES17, 20 kHz)
• SNR (4.4 mm): 131 dB (A-weighted)
• SNR (3.5 mm): 123 dB (A-weighted)
• Dynamic Range (4.4 mm): 132 dB (A-weighted)
• Line Output (4.4 mm): 4 Vrms
• Line Output (3.5 mm): 2 Vrms
• THD+N: 0.00014% (AES17, 20 kHz, no load)

Features:

• Utilizes dual Cirrus Logic CS43131 DAC chips to provide high-precision digital-to-analog conversion with low distortion and accurate sound reproduction
• Supports both 3.5mm single-ended and 4.4mm balanced headphone outputs, allowing compatibility with a wide range of headphones and in-ear monitors
• Delivers a wide 5Hz–82kHz frequency response (±1dB), ensuring extended low-frequency depth and high-frequency detail
• Features ultra-low background noise and a high signal-to-noise ratio for clean audio output, even with high-sensitivity earphones
• Provides high output voltage levels of 4Vrms (balanced) and 2Vrms (single-ended) for stable performance with demanding audio equipment
• Compact and lightweight USB-powered portable design, engineered for reliable use with smartphones, tablets, laptops, and desktop systems
